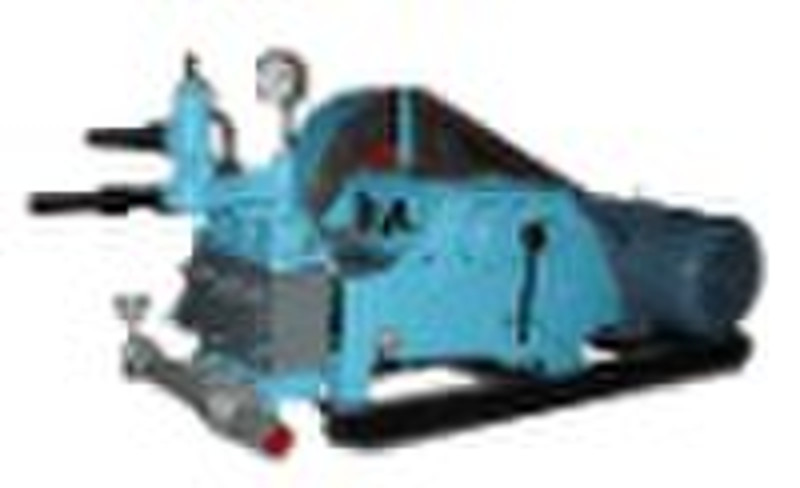

BWS-200/10 Mud Pump

BWS200/10 pump is not only transport clearwater and grout , but also transport mortar which is blow 5 mm. the grouter pumps which mainly used toproceed pressure injection and injection to earth dam, gypsum earth dam ofreservoir and stream-way for indurating their fracture, ravelly ground, fluidhole to prevent dam base from percolating, and which also used deliver mixedmortar including lime slurry, cement paste, paste, clay mortar, cement mortarand so on. This pump also is used in the kilometer of core drillings 1. This pump are sealing up position each mainly to adopt angle sealedstructural technology extensively , are sealed and reliable , have simpletechnology , pack to take apart convenience; 2. Entered drain the adopting of valve base is mounted hard alloy, valveadopting spring ball valve, hardness altitude, wear-resisting, impulsewithstand, pack to take apart convenience, service life is long; 3.The big ship of leather belt left put diameter to increase , powerchange convenience and easy; 4. The safe valve adopt diaphragm type; 5. The double-disk clutch have little adhesion , it is also reliable tooperate to be easy; 6. force plunger are sealed up add together water ring, make sealing upreliable, since washing cooling force plunger and the dirt on force plunger intime, make force plunger more durable. 7. It can be transported mud, and also transport mortar. BWS-200/10 MUD PUMP Specs TypeHorizontal, triplex, reciprocating, single acting plunger pump Stroke100mmLiner dia Φ65Pump speed (min)201,151,101,77Output volume (l.p.m) 200,150,100,75 Discharge pressure (Mpa) 5.0,6.5,10.0,10.0Transport medium size< 3 Transport medium Max. size < 7 Content is less than 5%Water: Ash: Sand limit density 1:2:4Input speed of pump (r.p.m) 500Max. suction head (m) 2.5Inside diameter of suction hose (mm) Φ76 Inside diameter of discharge (mm) Φ51Dimensionsmm1660×920×867 Weight (kg) 940 (Including electromotor)
