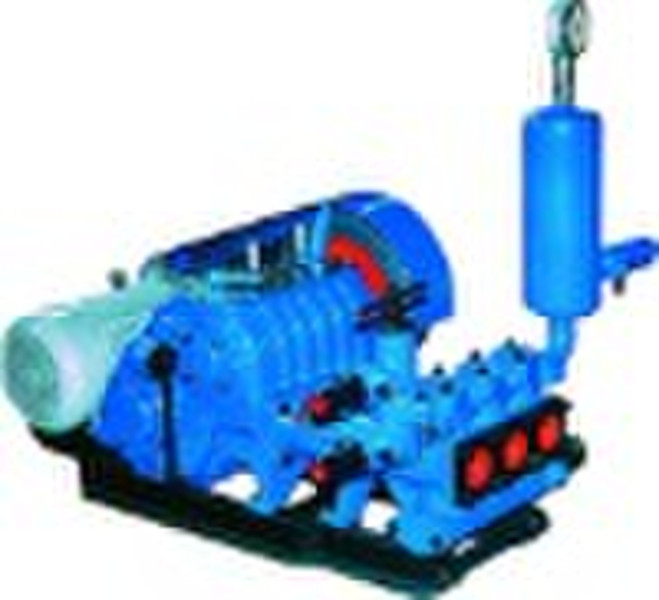

BW-250 Mud Pump

BW-250 Mud pump is a horizontal, triplex,single acting reciprocating piston pump, It has the advantages of multi-speedshift gears for variable displacement, compact construction, light weight,readily movable and easy to be operated etc. BW-250 Mud pump is provided with two kindsof liner, 80mm is forcore drilling of ordinary bore, 65mmis for core drilling of small bore with diamond bit. The pump can be driven by electric motor ordiesel engine according to the requirement of the customer in order. BW-250 MUD PUMP Specs TypeHorizontal, triplex, reciprocating, single acting piston pumpStroke100mmBore80mm65mmPump speed (s.p.m)200 116 72 42200 116 72 42Output volume (l.p.m)250 145 90 52116 96 60 35Discharge pressure (Mpa)2.5 4.5 6.0 6.04.0 6.0 7.0 7.0Volumetric efficiency85%Mechanical efficiency85%Total efficiency70%Input power/speed (kw/r.p.m)15/1500Multiple grooved pulley D.P (mm)410(B groove*5)Input speed of pump (r.p.m)500Max. suction head (m)2.5Inside diameter of suction hose (mm)76Inside diameter of discharge (mm)51Overall dimensions (mm)1100*995*650Weight (kg)500(without power)
