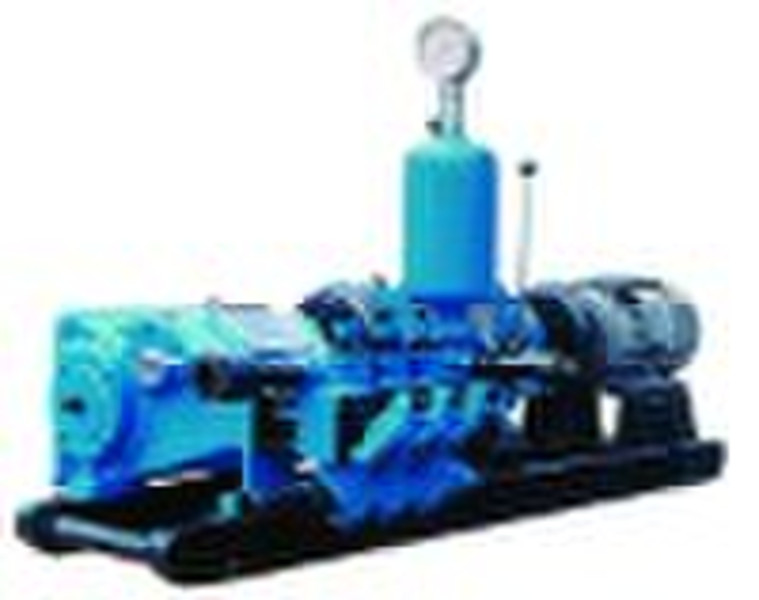

BW-150 Mud Pump

BW-150 pump is one of the principleequipment for geological drilling. It delivers the enough volume circulatingmud water of desired characteristic under pressure into the well to bring therook clastic up to the ground, to cool the drill bit to lubricate the drill T001and to protect the wall of the well, so the function of mud pump affect theefficiency of drilling and safety in production direct. BW-150 Mud pump is a horizontal, triplex,single acting reciprocating piston pump, which has eight speeds to get variousoutput volume. It is capable of delivering circulating mud water required insmall bore core drill, ling 1000-1500 meter deep with diamond bit. The pump can be driven by electric motor ordiesel engine according to the requirement of the customer in order. BW-150 MUD PUMP Specs TypeHorizontal, triplex, reciprocating, single acting piston pumpStroke70mmBore70mmPump speed (s.p.m)222,130,86,57,183,107,71,47Output volume (l.p.m)150,90,58,38,125,72,47,32Discharge pressure (Mpa)1.8,3.2,4.8,7.0,2.3,4.0,6.0,7.0Volumetric efficiency85%Input power (Kw)7.5Suction pipe dia (mm)50Discharge pipe dia (mm)32Drilling hole depth (m)Diamond core drilling < 1500Overall dimensions (mm)1840*795*995Weight (kg)516(with motor)
